How Rotary Axis Positioning Affects Complex Part Machining

Complex part manufacturing places demands on a CNC machine that conventional three-axis machining cannot always meet efficiently. Deep cavities, angled surfaces, undercuts, compound curves, and multiple machining faces often require the workpiece or cutting tool to change orientation during the machining process. This is where rotary axis positioning becomes a critical part of modern 5-axis CNC machining.

Unlike a conventional three-axis CNC machine, a 5-axis CNC machine combines X, Y, and Z linear movement with two additional rotary axes. These rotary axes allow the cutting tool and workpiece to approach a feature from different directions without requiring the part to be manually repositioned.

However, simply having five axes does not automatically guarantee better results. How those rotary axes are positioned, controlled, and synchronized directly influences machining accuracy, tool accessibility, surface quality, cycle time, and collision risk.

For engineers, machinists, and production managers working with complex components, understanding rotary axis positioning is therefore essential to achieving reliable precision machining results.

Understanding Rotary Axis Positioning in 5-Axis CNC Machining

What Are Rotary Axes?

In a 5-axis CNC machine, the rotary axes provide angular movement around the machine’s linear axes. Depending on the machine architecture, these axes may be configured as A, B, or C axes.

The exact configuration varies according to machine design. Some machines rotate the workpiece using a rotary table or trunnion, while others rotate the spindle head. Hybrid configurations combine table rotation with spindle-head tilting.

This difference is important because the location of the rotary axes changes how the machine handles the workpiece.

A trunnion-style 5-axis CNC machine, for example, rotates the workpiece around a defined center of rotation. A swivel-head configuration instead changes the orientation of the cutting tool relative to a stationary or less-mobile workpiece.

The rotary axis configuration affects:

• Workpiece accessibility
• Machine travel requirements
• Tool orientation
• Collision avoidance
• Workholding strategy
• Rotary axis accuracy
• Overall machining envelope

For complex part machining, these factors must be considered before programming begins.

Why Rotary Position Matters

Rotary positioning determines the angle at which the cutting tool approaches the workpiece. Changing this angle can dramatically alter the effective cutting conditions.

A tool that cannot reach a deep cavity vertically may be able to access the same feature by tilting the tool through a rotary axis. Similarly, a side wall that would require a separate setup on a three-axis machine may be machined from a new orientation without removing the workpiece.

This is one of the primary advantages of 5-axis machining.

Instead of repeatedly moving the part between fixtures, the machine can reposition the tool or workpiece and continue machining from another direction.

The result can be fewer setups, better positional consistency, and shorter overall production time.

Rotary Axis Positioning and Tool Accessibility

Reaching Difficult Features

One of the biggest benefits of rotary axis positioning is improved tool accessibility.

Complex components often contain features that cannot be reached efficiently with a fixed vertical tool orientation. Examples include:

• Deep cavities
• Angled holes
• Undercuts
• Blades
• Impellers
• Curved surfaces
• Inclined pockets
• Multi-face components

With a 5-axis CNC machine, the rotary axes can orient the tool toward these features.

Instead of forcing a long tool to reach a deep feature, the machine can tilt the tool into a more favorable cutting position. This allows the use of shorter and more rigid tools.

That change can significantly improve precision machining performance.

Shorter Tools and Greater Rigidity

Tool length has a direct relationship with tool deflection.

As tool length increases, the cutting tool becomes more susceptible to bending under cutting forces. Excessive deflection can lead to dimensional errors, poor surface finish, vibration, and premature tool wear.

Rotary axis positioning allows the programmer to change the tool orientation so that the cutting edge can reach the feature with a shorter tool whenever possible.

A shorter tool provides greater rigidity and helps maintain stable cutting conditions.

For complex parts with demanding tolerances, this can make a significant difference.

How Rotary Positioning Improves Multi-Surface Machining

Reducing Multiple Setups

Traditional machining often requires a part to be removed from the machine and repositioned whenever a different surface needs to be machined.

Every additional setup introduces another opportunity for error.

The operator must establish the workpiece position again, align the datum, secure the fixture, and verify the new coordinate system. Small positioning errors can accumulate across multiple operations.

A 5-axis CNC machine reduces this problem by allowing multiple surfaces to be machined from different orientations within a single setup.

The rotary axes reposition the workpiece or cutting tool while maintaining the relationship between the machine coordinate system and the part.

This is particularly valuable in precision machining applications where the relationship between multiple features is more important than the absolute accuracy of any individual feature.

Improving Feature-to-Feature Accuracy

Consider a complex housing with holes and pockets located on several angled faces.

With multiple setups, each face must be aligned independently. Even if every setup is performed carefully, small errors may occur during repositioning.

With 5-axis machining, the machine can access multiple faces without releasing the workpiece.

The original datum remains active throughout the operation, reducing setup-related variation.

This makes rotary axis positioning especially valuable for aerospace, medical, automotive, mold, and other industries where feature relationships are tightly controlled.

Rotary Axis Positioning and Surface Quality

Maintaining a Better Tool Orientation

Rotary axis positioning does more than simply provide access. It also allows programmers to maintain a more effective tool orientation relative to the workpiece surface.

For complex curved surfaces, a fixed tool orientation can create unfavorable cutting conditions. The effective contact area between the tool and material may change continuously as the tool moves across the surface.

A 5-axis CNC machine can continuously adjust the tool orientation to maintain a more consistent relationship between the cutting tool and the workpiece.

This can improve:

• Surface finish
• Cutting stability
• Tool life
• Material removal consistency
• Dimensional control

The result is more predictable precision machining performance across complex geometries.

Reducing Sudden Changes in Tool Engagement

Poor rotary axis positioning can cause sudden changes in tool engagement.

When the cutting tool enters a region with significantly different contact conditions, cutting forces can increase rapidly. This can create vibration, tool deflection, or surface defects.

A properly programmed rotary axis motion can gradually transition the tool orientation instead of making abrupt changes.

Smooth rotary movement therefore becomes an important part of maintaining stable cutting conditions.

Rotary Axis Positioning and Collision Avoidance

The Importance of Machine Envelope

Rotary movement creates additional collision possibilities that do not exist in conventional three-axis machining.

As the workpiece or spindle rotates, components that were previously far apart may move into the same space.

Potential collision points include:

• Cutting tool and workpiece
• Tool holder and workpiece
• Spindle head and fixture
• Spindle housing and rotary table
• Fixture and machine enclosure
• Tool and clamps

For this reason, rotary axis positioning must be evaluated against the complete machine configuration.

A toolpath that appears safe when viewed only from the cutting-tool perspective may still produce a collision when the spindle head or fixture rotates.

Simulation Before Machining

CAM simulation is an essential part of modern 5-axis CNC programming.

Before running a complex program, the programmer should verify the complete machine model, including the workpiece, fixture, tool holder, spindle head, rotary table, and other relevant machine components.

Simulation can identify problematic rotary movements before the program reaches the actual machine.

This is particularly important for simultaneous 5-axis machining, where multiple axes may move continuously during a cutting operation.

Rotary Axis Positioning and Cutting Efficiency

Maintaining Favorable Cutting Conditions

Rotary positioning can also influence cutting efficiency.

When the cutting tool approaches a surface at an appropriate angle, the programmer may be able to increase effective tool engagement while reducing unnecessary cutting forces.

For some applications, changing the tool orientation can allow the use of a more productive section of the cutting tool.

This is particularly useful when machining complex curved surfaces.

Rather than forcing a fixed tool orientation across the entire part, the 5-axis CNC machine can continuously adjust the tool axis to follow the geometry.

Reducing Non-Cutting Motion

Multiple setups often require additional handling, probing, alignment, and repositioning.

A well-planned 5-axis machining strategy can eliminate many of these non-cutting activities.

The machine can reposition the rotary axes automatically between features, allowing more machining operations to occur without operator intervention.

This can reduce:

• Setup time
• Workpiece handling
• Alignment time
• Inspection interruptions
• Non-cutting machine time

The cumulative effect can be substantial in production environments.

Rotary Axis Accuracy and Calibration

Rotary Axis Accuracy Matters

The benefits of rotary positioning depend heavily on rotary axis accuracy.

If a rotary axis does not position accurately, the resulting angular error can translate into significant dimensional errors at the cutting location.

This effect becomes more pronounced as the distance between the rotary axis center and the cutting point increases.

For example, a small angular positioning error may produce a much larger linear deviation at the end of a long tool or on a large workpiece.

Therefore, rotary axis accuracy should be evaluated alongside linear positioning accuracy when selecting a 5-axis CNC machine.

Calibration and Compensation

Modern 5-axis CNC machines use calibration and compensation systems to maintain rotary axis accuracy.

Machine builders may use precision measurement equipment to identify geometric errors and compensate for them through the CNC control system.

Regular verification is still important, particularly for machines performing demanding precision machining operations.

Rotary axis calibration should be included within the machine’s maintenance and accuracy verification program.

Choosing Rotary Positions in CAM Programming

3+2 Positioning vs. Simultaneous 5-Axis Motion

Not every complex component requires continuous five-axis movement.

In many cases, 3+2 machining is sufficient.

The rotary axes move to a predefined orientation and then remain fixed while the X, Y, and Z axes perform the cutting operation.

This approach can simplify programming and verification.

Full simultaneous 5-axis machining is more appropriate when the geometry requires continuous tool orientation changes, such as complex freeform surfaces, blades, impellers, and certain deep or undercut features.

The best strategy depends on the geometry rather than simply using all five axes because the machine has them.

Choosing the Optimal Tool Angle

The ideal rotary position depends on several variables:

• Part geometry
• Tool diameter
• Tool length
• Cutting direction
• Surface curvature
• Workholding configuration
• Machine travel limits
• Collision clearance
• Required surface finish

A small change in tool angle can sometimes improve accessibility significantly.

However, excessive rotary movement can increase programming complexity and create unnecessary axis motion.

The goal is to find a tool orientation that provides sufficient access while maintaining stable cutting conditions and adequate clearance.

How Rotary Axis Positioning Supports Precision Manufacturing

Rotary axis positioning is ultimately about controlling the relationship between the tool, workpiece, and cutting surface.

When that relationship is properly managed, a 5-axis CNC machine can perform complex machining operations with fewer setups and more consistent positioning.

This capability supports precision machining in industries where components contain complex geometries and demanding tolerances.

Aerospace components may require multiple angled surfaces and blended transitions. Medical components may contain highly complex freeform geometries. Automotive and mold applications often involve deep cavities, curved surfaces, and multiple machining directions.

In each case, rotary axis positioning provides a way to approach the geometry more effectively.

The machine’s value therefore comes not simply from having two additional axes, but from using those axes intelligently.

Best Practices for Rotary Axis Positioning

To achieve reliable results, manufacturers should establish a systematic approach to rotary axis positioning.

1. Understand the Machine Kinematics

Know whether the machine uses a table-table, head-head, or head-table configuration.

Understand the rotary axis centers, travel limits, home positions, and machine-specific restrictions before programming.

2. Minimize Tool Stick-Out

Use rotary positioning to reach features with the shortest practical tool.

Reducing tool length improves rigidity and reduces deflection.

3. Include Fixtures in Simulation

Always model the complete workholding system when verifying a 5-axis CNC toolpath.

A safe toolpath is not enough if the spindle or fixture can collide during rotary movement.

4. Use 3+2 When Appropriate

Do not use simultaneous five-axis motion simply because the machine is capable of it.

If a feature can be machined efficiently with indexed positioning, 3+2 may provide a simpler and more stable solution.

5. Verify Rotary Axis Accuracy

Include rotary axis positioning accuracy in regular machine verification and calibration procedures.

6. Optimize Tool Orientation

Evaluate tool angle, cutting force, accessibility, surface finish, and collision clearance together rather than optimizing only one variable.

7. Verify the First Part

Run the first component conservatively and inspect critical dimensions before moving into full production.

This provides an opportunity to identify rotary positioning errors before they affect an entire batch.

Conclusion

Rotary axis positioning is one of the defining capabilities of 5-axis CNC machining. By allowing the tool or workpiece to change orientation, rotary axes provide access to complex surfaces, reduce the number of setups, improve tool rigidity, and support more consistent cutting conditions.

However, effective 5-axis machining requires more than simply adding rotary movement to a toolpath. Machine kinematics, rotary axis accuracy, tool orientation, workholding, collision avoidance, and CAM programming must all work together.

When these factors are properly coordinated, rotary axis positioning can significantly improve complex part machining efficiency while supporting the accuracy and surface quality required for modern precision machining.

For manufacturers working with increasingly complex components, understanding how to use rotary axes effectively is therefore not just a programming skill. It is an important part of building a reliable and competitive 5-axis manufacturing process.

FAQ

What is rotary axis positioning in 5-axis CNC machining?

Rotary axis positioning refers to the controlled angular movement of the rotary axes on a 5-axis CNC machine. These axes allow the cutting tool or workpiece to change orientation, providing access to complex surfaces and enabling multiple machining operations to be completed from different directions.

How does rotary axis positioning improve machining accuracy?

Rotary axis positioning can reduce the number of setups required to manufacture a complex component. By machining multiple surfaces without removing the workpiece from the fixture, the machine can maintain the original datum and reduce setup-related positioning errors.

Does rotary axis positioning reduce machining time?

It can significantly reduce total production time by minimizing manual repositioning, setup changes, and non-cutting operations. A well-planned 5-axis machining strategy can allow multiple surfaces to be completed within one setup.

Is simultaneous 5-axis machining always necessary?

No. Many components can be machined efficiently using 3+2 positioning, where the rotary axes index to a fixed orientation before the linear axes perform the cutting operation. Simultaneous 5-axis machining is most useful when the geometry requires continuous tool orientation changes.

How does rotary axis positioning affect tool life?

Proper rotary positioning can improve tool life by maintaining more favorable cutting conditions and allowing shorter, more rigid tools to reach difficult features. Better tool orientation can also reduce vibration and excessive tool engagement.

Why is rotary axis calibration important?

Small angular errors in a rotary axis can create larger dimensional deviations at the cutting point, particularly when the tool or workpiece is positioned far from the rotary axis center. Regular calibration and verification help maintain reliable 5-axis CNC machining accuracy.

What industries benefit most from rotary axis positioning?

Aerospace, medical, automotive, mold, energy, and precision component manufacturing can all benefit from rotary axis positioning. These industries frequently produce parts with complex surfaces, angled features, deep cavities, and tight dimensional requirements.

Understanding the Difference Between 3+2 and Simultaneous 5-Axis Machining

In modern precision manufacturing, 5-axis machining has become an essential technology for producing complex components used in aerospace, medical, automotive, semiconductor, and mold industries.

However, many manufacturers are still confused about the difference between 3+2 machining and simultaneous 5-axis machining.

Although both methods use five axes, their machining principles, capabilities, and applications are fundamentally different.

---

What Is 3+2 Machining?

3+2 machining, also known as positional 5-axis machining, uses a traditional three-axis machining process combined with two additional rotary axes.

The workflow is:

1. The rotary axes rotate the workpiece or tool to a specific angle.
2. The rotary axes lock into position.
3. The machine performs normal 3-axis cutting.

During cutting:

• X-axis moves left and right
• Y-axis moves forward and backward
• Z-axis moves up and down

The A/B/C rotary axes remain fixed.

In simple terms:

3+2 machining positions the tool from different angles, but does not continuously move all five axes during cutting.

---

What Is Simultaneous 5-Axis Machining?

Simultaneous 5-axis machining allows all five axes to move at the same time during cutting.

The machine continuously controls:

• X-axis
• Y-axis
• Z-axis
• Rotary axis A
• Rotary axis B/C

The cutting tool can smoothly follow complex surfaces while maintaining the optimal tool angle.

This enables:

• Complex curved surface machining
• Continuous contouring
• Better surface finish
• Reduced machining time

---

Key Differences Between 3+2 and Simultaneous 5-Axis Machining

---

1. Machining Complexity

3+2 Machining

3+2 is suitable for parts requiring:

• Multiple side machining
• Angled holes
• Simple inclined surfaces

Examples:

• Brackets
• Fixtures
• Basic aerospace components

However, it has limitations when machining:

• Impellers
• Blades
• Medical implants
• Complex molds

---

Simultaneous 5-Axis Machining

True 5-axis machining is designed for complex geometries.

Typical applications:

Aerospace

• Turbine blades
• Structural components
• Engine parts

Medical

• Dental implants
• Surgical tools
• Orthopedic components

Semiconductor

• Precision test fixtures
• Wafer inspection components

---

2. Surface Finish and Accuracy

One major advantage of simultaneous 5-axis machining is improved tool orientation control.

During machining, the cutting tool can maintain the optimal angle relative to the surface.

Benefits:

• Reduced vibration
• Stable cutting conditions
• Better surface finish
• Longer tool life

For high-value parts requiring precision machining, this difference is significant.

---

3. Workpiece Setup and Accuracy

With traditional machining:

A complex part may require:

1. First setup
2. Second setup
3. Third setup
4. Manual repositioning

Each setup introduces potential errors.

A true 5-axis CNC machine can complete more operations in one setup.

Advantages:

• Reduced fixture errors
• Improved positional accuracy
• Shorter production time

---

4. Programming Difference

3+2 Machining

Advantages:

• Easier programming
• Lower CAM requirements
• Suitable for standard machining operations

Simultaneous 5-Axis Machining

Requires:

• Advanced CAM software
• Experienced programmers
• Better machine control

Common CAM systems:

• Siemens NX
• Mastercam
• hyperMILL
• PowerMill

---

Why Choose Simultaneous 5-Axis Machining?

For manufacturers producing:

• Complex geometries
• High-value components
• Small batch production
• Customized precision parts

simultaneous 5-axis machining provides greater flexibility.

Main advantages:

1. One-time clamping

Complete multiple surfaces without repositioning.

2. Better precision

Reduce accumulated positioning errors.

3. Higher efficiency

Reduce setup time and improve production workflow.

4. Better surface quality

Maintain ideal cutting angles.

---

Is 3+2 Machining Enough?

The answer depends on the application.

Choose 3+2 machining when:

✔ Parts have simple angled features
✔ Cost efficiency is the priority
✔ Complex surface machining is not required

Choose simultaneous 5-axis machining when:

✔ Parts have complex curves
✔ Tight tolerances are required
✔ Multiple setups affect accuracy
✔ High-value materials are used

---

DEPU True 5-Axis CNC Solution

DEPU five-axis machining centers are designed for manufacturers requiring:

• High precision
• Complex part machining
• Stable long-term performance

With true simultaneous 5-axis capability, DEPU machines support industries including:

• Aerospace
• Medical
• Semiconductor
• Automotive
• Precision mold manufacturing

Products such as DEPU G300, G630, and G800 five-axis machining centers provide the flexibility required for modern precision manufacturing.

---

FAQ

1. Is 3+2 machining considered true 5-axis machining?

No. Although it uses five axes, only three axes move during cutting. True 5-axis machining requires simultaneous movement of all five axes.

---

2. Is simultaneous 5-axis machining more expensive?

Yes, because it requires advanced machine structures, CNC systems, and CAM programming. However, it can reduce setup time and improve productivity.

---

3. Which industries need simultaneous 5-axis machining?

Industries such as aerospace, medical, semiconductor, and high-precision manufacturing commonly use simultaneous 5-axis CNC machines.

---

4. Can a 5-axis machine replace a 3-axis machine?

For many complex applications, yes. However, simple machining operations may still be more economical on a 3-axis machine.

---

Conclusion

The difference between 3+2 machining and simultaneous 5-axis machining is not simply the number of axes available, but how those axes work together.

3+2 machining provides multi-angle positioning, while simultaneous 5-axis machining enables continuous motion and advanced complex part manufacturing.

For manufacturers pursuing higher accuracy, shorter production cycles, and greater flexibility, a true 5-axis CNC machine is the future of precision machining

How 5-Axis Machining Improves Efficiency in Complex Part Manufacturing

Modern manufacturing industries are facing increasing pressure to produce more complex components with higher accuracy, shorter delivery times, and lower production costs. Traditional machining methods often require multiple setups, specialized fixtures, and additional manual operations to complete complicated geometries. These limitations increase production time and create more opportunities for dimensional errors.

This is where 5-axis machining provides a significant advantage.

Unlike conventional 3-axis machining, which moves the cutting tool along X, Y, and Z linear axes, a 5-axis cnc machine adds two rotational axes that allow the tool and workpiece to move simultaneously from multiple directions. This capability enables manufacturers to machine complex surfaces, deep cavities, angled features, and precision contours in fewer setups.

For industries such as aerospace, automotive, medical devices, semiconductor equipment, and high-end mold manufacturing, 5-axis machining has become a critical solution for improving production efficiency while maintaining exceptional accuracy.

This article explains how a 5-axis cnc machine improves efficiency in complex part manufacturing and why more manufacturers are upgrading from traditional machining solutions.

1. Reducing Multiple Setups and Improving Production Efficiency

The Challenge of Traditional Multi-Setup Machining

One of the biggest limitations of conventional machining is the need for multiple setups.

When producing a complex component using a traditional 3-axis cnc machine, operators often need to reposition the workpiece several times to access different surfaces. Each repositioning requires:

• Fixture adjustment
• Workpiece alignment
• Datum re-establishment
• Additional inspection

Every additional setup increases production time and introduces potential positioning errors.

For precision components, even a small alignment deviation between setups can affect final part accuracy.

How 5-Axis Machining Solves Setup Problems

A 5-axis cnc machine allows manufacturers to access multiple sides of a workpiece in a single setup.

The additional rotary axes enable the cutting tool to approach the part from different angles without removing the workpiece. This significantly reduces:

• Setup preparation time
• Fixture requirements
• Manual repositioning
• Intermediate inspection steps

By completing more operations in one clamping, 5-axis machining improves process consistency and reduces human intervention.

For complex aerospace components, medical implants, and precision mechanical parts, reducing setups can dramatically shorten the overall manufacturing cycle.

2. Improving Tool Accessibility for Complex Geometries

Machining Difficult Features with Traditional Methods

Complex parts often contain:

• Deep pockets
• Angled holes
• Curved surfaces
• Undercut features
• Freeform geometries

With traditional 3-axis machining, tool accessibility becomes a major challenge. Operators must often use long cutting tools or create special fixtures to reach difficult areas.

However, longer tools introduce additional problems:

• Reduced rigidity
• Increased vibration
• Lower cutting performance
• Poorer surface finish

Better Tool Orientation with 5-Axis CNC

A major advantage of 5-axis machining is the ability to continuously adjust tool orientation.

Instead of forcing the tool to approach the workpiece from only one direction, a 5-axis cnc machine can tilt the cutting tool to maintain an optimized cutting angle.

Benefits include:

• Shorter tools
• Higher rigidity
• Better surface quality
• Faster material removal
• Improved tool life

This capability is especially valuable in industries requiring complex surface machining, such as aerospace turbine blades, medical implants, and precision molds.

3. Increasing Accuracy and Reducing Human Error

The Relationship Between Setup Accuracy and Part Quality

In precision machining, accuracy depends not only on machine capability but also on process stability.

Every time an operator changes the fixture position, there is a possibility of:

• Datum deviation
• Alignment errors
• Incorrect offsets
• Accumulated positioning mistakes

For high-value components, these errors can lead to expensive scrap and rework.

Precision Advantages of 5-Axis Machining

Because 5-axis machining can complete multiple operations in one setup, it reduces the number of times a workpiece must be repositioned.

This creates several advantages:

Improved positional accuracy

Critical features maintain their relationship to the original datum reference.

Better repeatability

Production batches achieve more consistent dimensions.

Reduced inspection requirements

Fewer setups mean fewer opportunities for variation.

A high-quality 5-axis cnc machine combined with advanced CNC control systems can achieve extremely stable precision machining results for demanding applications.

4. Improving Surface Finish and Reducing Secondary Operations

Maintaining Optimal Cutting Conditions

In conventional machining, tool orientation is often limited. This can force the cutting tool to operate in less-than-ideal conditions.

Poor tool engagement can cause:

• Uneven cutting forces
• Excessive vibration
• Poor surface finish
• Shorter tool life

Continuous Tool Angle Control

A 5-axis cnc machine allows the cutting tool to maintain a better relationship with the workpiece surface.

This improves:

• Cutting stability
• Material removal efficiency
• Surface consistency

For complex curved surfaces, 5-axis machining can reduce or eliminate additional finishing operations.

This is particularly important for industries where surface quality directly affects product performance, including aerospace and medical manufacturing.

5. Increasing Manufacturing Flexibility

One Machine, Multiple Applications

Modern manufacturers need equipment that can handle diverse production requirements.

A traditional machine may require different fixtures or machines for different operations.

A 5-axis cnc machine provides greater flexibility by supporting:

• Complex milling
• Multi-angle drilling
• Contouring
• Surface finishing
• Precision component manufacturing

This makes it easier for manufacturers to adapt to new projects without investing in multiple specialized machines.

Supporting Advanced Manufacturing Requirements

As industries move toward lightweight structures and complex designs, component geometries continue to become more challenging.

Examples include:

• Aerospace structural parts
• Automotive lightweight components
• Medical implants
• Energy equipment parts

These applications require advanced 5-axis machining capabilities that traditional equipment cannot efficiently provide.

6. Lowering Long-Term Manufacturing Costs

Although the initial investment for a 5-axis cnc machine is higher than traditional machining equipment, the long-term economic benefits are significant.

A 5-axis machining solution can reduce:

• Labor requirements
• Fixture costs
• Setup time
• Scrap rates
• Secondary processing

Higher machine utilization and faster production cycles also improve overall manufacturing efficiency.

For companies producing complex, high-value components, the productivity gains often justify the initial investment.

7. The Role of CAM Software in 5-Axis Machining Efficiency

Advanced CAM software is essential for maximizing the benefits of 5-axis machining.

Modern CAM solutions provide:

• Automatic toolpath generation
• Collision detection
• Machine simulation
• Tool axis optimization

These functions help engineers create safer and more efficient machining programs.

A properly configured CAM workflow allows manufacturers to fully utilize the capabilities of a 5-axis cnc machine while reducing programming time and machining risks.

FAQ

What is the biggest advantage of 5-axis machining?

The biggest advantage of 5-axis machining is the ability to complete complex parts in fewer setups. By allowing multi-directional tool movement, a 5-axis cnc machine improves accuracy, reduces production time, and increases manufacturing efficiency.

Is 5-axis machining better than 3-axis machining?

For simple components, 3-axis machining may be sufficient. However, for complex geometries requiring multiple angles and surfaces, 5-axis machining provides significant advantages through better tool access, fewer setups, and improved precision.

Which industries use 5-axis cnc machines?

A 5-axis cnc machine is widely used in aerospace, automotive, medical devices, semiconductor equipment, energy, and precision mold manufacturing industries where complex parts and high accuracy are required.

Does 5-axis machining reduce production costs?

Yes. Although the initial investment is higher, 5-axis machining reduces manufacturing costs by minimizing setups, lowering fixture requirements, improving tool utilization, and reducing scrap caused by positioning errors.

What is required to operate a 5-axis cnc machine?

Successful 5-axis machining requires:

• Advanced CAM software
• Skilled programmers
• Proper machine calibration
• Appropriate tooling
• Effective process planning

A complete workflow is essential to achieve maximum efficiency.

Conclusion

As manufacturing continues to demand more complex geometries, tighter tolerances, and faster production cycles, 5-axis machining has become one of the most effective technologies for improving manufacturing efficiency.

By reducing setups, improving tool accessibility, increasing accuracy, and optimizing production workflows, a 5-axis cnc machine enables manufacturers to produce advanced components faster and more reliably.

For companies involved in aerospace, medical, automotive, and precision manufacturing, investing in advanced 5-axis machining technology is not only a production upgrade but also a strategic advantage for future competitiveness.

Explore DEPU CNC 5-Axis Machining Solutions:
www.depu.com

Why a Horizontal Mill Is Ideal for Heavy Duty Machining Applications

When production demands push beyond what conventional vertical setups can reliably handle, engineers and shop managers begin asking a critical question: which machine architecture truly supports heavy duty machining at scale? The answer, in many high-volume and high-precision industrial environments, points consistently toward the horizontal mill. This machine configuration has earned its reputation not by accident but through decades of demonstrated performance in demanding sectors like aerospace, energy, automotive, and heavy equipment manufacturing.

A horizontal mill places the spindle in a horizontal orientation, which fundamentally changes how cutting forces are distributed, how chips are evacuated, and how workpieces can be fixtured. These are not minor engineering details — they are the precise reasons why a horizontal mill consistently outperforms other configurations when the work is large, the tolerances are tight, and the cycle times need to stay competitive. Understanding why this machine type is the preferred choice for heavy duty work requires a closer look at its structural, operational, and productivity-related advantages.

Structural Advantages That Define Heavy Duty Performance

Rigidity and Spindle Orientation

The backbone of any heavy duty machining solution is machine rigidity. A horizontal mill is engineered with a low center of gravity and a robust column and spindle housing that directly resists the deflection forces generated during aggressive cutting passes. When machining large castings, forgings, or structural components, the lateral forces involved are substantial, and a machine that flexes under load will always compromise dimensional accuracy.

The horizontal spindle orientation allows the cutting tool to engage the workpiece from the side rather than from above. This geometry means that gravity assists in chip evacuation rather than working against it. More importantly, the machine’s column and bed can be designed with deeper cross-sections and more robust ribbing, since the structural load path is far more favorable in a horizontal configuration compared to a vertically oriented alternative.

In practice, this translates to a horizontal mill being able to take deeper cuts, use higher feed rates, and maintain tighter tolerances over a full shift of continuous heavy machining without accumulating thermal or mechanical drift that would otherwise require frequent recalibration or tool path corrections.

Pallet Changer Integration and Workholding Efficiency

Most industrial horizontal mill configurations are designed to integrate directly with automated pallet changing systems. This is not simply a convenience feature — it is a fundamental productivity multiplier in heavy duty environments. A pallet changer allows one workpiece to be machined while the next is being set up on an adjacent pallet station, eliminating the idle spindle time that plagues job shops relying on manual workpiece loading.

The horizontal mill’s tombstone fixturing system extends this advantage further. A tombstone mounted on the rotary pallet axis can hold multiple workpiece faces simultaneously, meaning the machine’s B-axis indexing can expose four or more machining faces in a single setup. For heavy components that would otherwise require multiple manual repositions on a vertical machine, this capability dramatically reduces setup time and improves the consistency of inter-feature relationships.

When a horizontal mill is equipped with a dual-pallet system, overall equipment effectiveness rises sharply because the machine almost never waits for the operator. In high-volume heavy duty environments, this operational rhythm is a decisive competitive advantage.

Chip Management in High-Material-Removal Operations

Gravity-Assisted Chip Evacuation

Heavy duty machining generates enormous chip volumes, and poor chip management is one of the most underestimated sources of downtime, tool wear, and surface quality problems in industrial operations. A horizontal mill addresses this challenge through its fundamental geometry: chips fall away from the cutting zone by gravity, landing below the workpiece and onto a conveyor rather than piling up around the tool or on the fixture.

On a vertical machine, chips accumulate on top of the workpiece and inside pockets. They must be actively blasted away with coolant or air, and they frequently get re-cut, which shortens tool life and degrades surface finishes. A horizontal mill avoids this problem structurally — the cutting zone is always positioned so that material removed from the workpiece has a clear, downward path to the chip management system.

This distinction becomes especially significant when machining materials like cast iron, titanium alloys, or hardened steel, where chip volume is high and chip re-cutting is particularly damaging to both the tool and the finished surface. A horizontal mill’s inherent chip evacuation advantage directly supports longer tool life, better surface integrity, and fewer unplanned interruptions.

Coolant Delivery Effectiveness

The horizontal spindle orientation on a horizontal mill also improves the effectiveness of through-spindle coolant delivery. Because the coolant follows the same gravitational direction as the chips, it actively flushes debris away from the cutting zone rather than simply washing it around. High-pressure through-spindle coolant on a horizontal mill reaches the tool tip directly and immediately carries swarf downward and away.

This matters in heavy duty machining contexts where deep pocket milling, long boring operations, and multi-axis contouring are standard requirements. Each of these operations generates heat and chip accumulation at the cutting interface, and a horizontal mill’s coolant geometry provides consistently better thermal management than what is possible on machines where the cutting zone orientation works against coolant flow.

Thermal stability in the spindle and workpiece is a critical factor in maintaining tolerance control over long machining cycles. The horizontal mill’s superior coolant delivery directly contributes to dimensional repeatability, which is non-negotiable in sectors where part rejection costs are high.

Multi-Face Machining Capability and Reduced Setup Time

The Value of B-Axis Indexing in Heavy Duty Work

One of the most operationally significant reasons to choose a horizontal mill for heavy duty machining is the machine’s ability to index the workpiece around the B-axis without removing it from the pallet. For complex prismatic parts — housings, manifolds, gearboxes, and structural brackets — this means that features on multiple faces can be completed in a single clamping, maintaining the positional relationship between each machined surface with the accuracy of the machine itself rather than the accuracy of successive manual setups.

Every time a part is unclamped and re-fixtured, a new source of positional error is introduced. In heavy duty work, where parts are large and clamping forces are significant, setup error accumulation is a real production risk. A horizontal mill eliminates most re-clamping steps by using rotary pallet indexing to present each face of the workpiece to the spindle in sequence, holding all features to the same datum throughout the entire machining cycle.

This single-setup approach does more than protect tolerances — it compresses total cycle time significantly. Operations that would require three or four separate machining operations on a vertical machine can often be completed in one uninterrupted cycle on a horizontal mill, with direct positive effects on throughput and scheduling predictability.

Handling Large and Heavy Workpieces

Heavy duty machining frequently involves workpieces that are not only complex but also physically large and heavy. A horizontal mill is typically designed with robust pallet tables, high load ratings, and wide travel ranges that accommodate the kind of large-format components common in energy, mining, and heavy equipment industries. The horizontal configuration naturally lends itself to a stable, low-profile table that is easier to load with crane-assisted fixturing.

The workholding strategy on a horizontal mill also benefits from the horizontal orientation when securing heavy components. Gravity helps seat workpieces firmly onto the pallet table or tombstone fixture, and the clamping forces needed are often lower than would be required on a vertical machine where gravity pulls the workpiece away from the spindle. This results in more secure, distortion-free clamping for large parts, which supports accuracy throughout the machining cycle.

For shops handling components that weigh hundreds or even thousands of kilograms, the horizontal mill’s structural design and load capacity make it the only realistic choice for achieving both the dimensional precision and the throughput required by serious heavy duty production contracts.

Productivity and Long-Term Value in Industrial Environments

Higher Material Removal Rates and Tool Life

The combination of structural rigidity, superior chip evacuation, and effective coolant delivery allows a horizontal mill to sustain higher material removal rates than comparably sized vertical configurations. In heavy duty machining, where roughing passes may remove several cubic centimeters of material per minute, the ability to push cutting parameters without sacrificing stability directly determines how competitive a shop’s cost per part can be.

A horizontal mill’s spindle and tooling interface are designed for the lateral forces and moments that arise from aggressive side milling, boring, and face milling operations. This robustness means that tools wear more predictably, fewer unexpected tool failures occur mid-cycle, and cutting parameter optimization is more reliable. Over the lifespan of a production program, these factors accumulate into measurable reductions in tooling cost and unplanned downtime.

Industrial buyers who evaluate the total cost of ownership for a horizontal mill consistently find that the initial investment is offset by productivity gains, reduced scrap, and lower indirect labor costs associated with fewer setups and more predictable maintenance schedules. In heavy duty machining environments where machine utilization is the primary driver of profitability, the horizontal mill’s operating economics are compelling.

Scalability and Integration with Automation

A horizontal mill is architecturally well-suited to integration within automated manufacturing cells. The pallet-based workholding system connects naturally with automated pallet pools, robotic loading systems, and flexible manufacturing cell controllers, allowing shops to scale capacity without proportionally scaling labor. This scalability is particularly valuable in heavy duty sectors where order volumes fluctuate but quality standards remain constant.

Modern horizontal mill platforms support full integration with manufacturing execution systems, enabling real-time monitoring of spindle load, coolant flow, tool life, and pallet status. This data connectivity supports proactive maintenance strategies and provides the operational visibility needed to optimize scheduling in multi-machine environments. For industrial buyers planning capacity expansions, a horizontal mill that is automation-ready from the outset provides a sustainable path to increased output without the disruption and cost of major cell redesigns.

The combination of high machine utilization, automation compatibility, and built-in productivity features means that a horizontal mill represents not just a machining solution but a long-term strategic asset for manufacturers serious about heavy duty production capability.

FAQ

What makes a horizontal mill better suited for heavy duty machining than a vertical mill?

A horizontal mill provides superior rigidity, gravity-assisted chip evacuation, and multi-face access through B-axis indexing — all of which are critical in heavy duty machining contexts. These structural and operational advantages allow the horizontal mill to sustain higher cutting forces, maintain tighter tolerances, and complete complex parts in fewer setups compared to a vertical configuration.

How does a horizontal mill improve chip management during aggressive cutting operations?

Because the spindle is horizontally oriented, chips fall away from the cutting zone by gravity during machining on a horizontal mill. This prevents chip accumulation around the tool, reduces re-cutting of material, extends tool life, and supports better surface quality — all of which are especially important when machining high-volume material removal operations on tough alloys or cast materials.

Can a horizontal mill handle very large and heavy workpieces effectively?

Yes. A horizontal mill is typically designed with high-load pallet tables, wide travel ranges, and robust structural components that can support large and heavy workpieces. The horizontal fixturing orientation also helps gravity seat components securely, reducing the clamping forces needed and minimizing part distortion — a significant advantage when machining oversized structural or industrial components.

Is a horizontal mill a practical choice for automated production environments?

A horizontal mill is architecturally well-suited to automation. The pallet-based workholding system integrates naturally with automated pallet pools and robotic loading systems, allowing manufacturers to increase throughput without proportionally increasing labor. This makes the horizontal mill one of the most scalable and automation-ready machine tool investments available for heavy duty industrial production.

Conclusion

A horizontal mill has become a preferred solution for manufacturers that require reliable heavy duty machining performance, higher productivity, and consistent precision under demanding production conditions. Its advantages in structural rigidity, chip evacuation, coolant efficiency, multi-face machining capability, and automation integration make it uniquely suited for industries where large components, tight tolerances, and high material removal rates are standard requirements.

Compared with traditional vertical configurations, a horizontal mill provides a more stable machining environment for complex and heavy workpieces while reducing setup time and improving overall equipment utilization. The ability to complete multiple operations in a single setup not only improves accuracy but also reduces labor requirements and production variability.

For aerospace, energy, automotive, mining, and heavy equipment manufacturers, investing in a horizontal mill is not simply an equipment purchase — it is a long-term strategy for improving manufacturing capability, increasing competitiveness, and supporting future production growth. As industrial requirements continue to evolve toward higher precision and greater automation, the horizontal mill remains one of the most valuable machine tool platforms for serious heavy duty machining operations.

How to Choose the Right Milling Machine: A Complete Buying Guide

Choosing the right milling machine is one of the most consequential decisions a modern machine shop will make. Whether you are setting up a new facility, expanding production capacity, or replacing aging equipment, the right milling machine defines what your shop can produce, how fast it can produce it, and how competitively you can price your work. With so many configurations, specifications, and technology options now available, making an informed purchase requires more than simply comparing spindle speeds or price tags.

This buying guide is designed for production engineers, shop managers, and procurement teams who need to evaluate a milling machine against real operational requirements. We will walk through every major consideration — from understanding machine types and axis configurations to evaluating spindle performance, control systems, and long-term service support — so that your investment delivers measurable value from day one.

Understanding the Types of Milling Machines Available Today

Vertical vs. Horizontal Milling Machines

The most fundamental distinction when selecting a milling machine is the orientation of the spindle. A vertical milling machine positions the spindle perpendicular to the worktable, making it ideal for face milling, end milling, and drilling operations. It offers excellent operator visibility and is generally more intuitive for operators transitioning from manual machining environments.

A horizontal milling machine orients the spindle parallel to the worktable. This configuration excels in heavy material removal, slotting, and gang milling operations where multiple cutters work simultaneously. Horizontal machines tend to produce better chip evacuation and are preferred in high-volume production environments where cycle time and tool life are the dominant concerns.

Many modern machine shops opt for a universal milling machine that can operate in both orientations, providing production flexibility without requiring two separate capital investments. Understanding the dominant workpiece types your shop handles should guide this initial classification decision.

CNC Milling Machines vs. Manual Machines

A CNC milling machine uses computer numerical control to automate axis movement, tool changes, and machining sequences. For any shop producing complex geometries, repeating part programs, or working to tight tolerances, a CNC milling machine is the practical standard. It eliminates human input variability, supports unattended machining, and dramatically shortens setup time for repeat jobs.

Manual milling machines still hold relevance in toolrooms, educational settings, and shops that produce one-off custom parts where programming overhead would outweigh automation benefits. However, even in these contexts, a CNC milling machine with conversational programming capabilities can offer a middle ground that combines ease of use with repeatable precision.

For most modern machine shops operating competitively in today’s market, a CNC milling machine is the baseline expectation, not a premium upgrade. Evaluating the control system’s capabilities, programming environment, and integration with CAD/CAM software should be a central part of any purchase evaluation.

Key Technical Specifications That Define Performance

Axis Travel and Work Envelope

The work envelope of a milling machine describes the maximum range of movement in the X, Y, and Z axes. Selecting a machine with insufficient axis travel is one of the most common specification errors shops make, particularly when workpiece sizes are expected to grow over time. Always factor in fixturing height and the actual accessible cutting zone when interpreting axis travel figures.

A milling machine with generous axis travel gives production teams more flexibility to accommodate larger assemblies, tombstone fixtures, or multiple parts staged in a single setup. For shops doing aerospace, mold, or structural component work, extended Y-axis and Z-axis travel can be particularly critical to avoid secondary setups.

When evaluating axis travel, also review the machine’s table load rating. A milling machine’s table must support not just the workpiece weight but also the weight of the fixture, pallets, and any additional clamping hardware. Underestimating table load requirements can lead to accuracy degradation and premature wear.

Spindle Speed, Power, and Taper

The spindle is the heart of any milling machine, and its performance specifications directly determine which materials and processes the machine can handle efficiently. Spindle speed range should match your intended cutting strategies — high RPM is essential for finishing aluminum or non-ferrous materials with small-diameter tools, while high torque at lower RPM is critical for roughing steel or titanium.

Spindle power, typically expressed in kilowatts or horsepower, determines how aggressively the milling machine can remove material without deflection or stalling. Insufficient spindle power forces operators to reduce feed rates and depth of cut, increasing cycle times and undermining the productivity gains that justified the capital investment.

Spindle taper — commonly BT30, BT40, or BT50 — affects toolholder rigidity and the range of tooling available to you. A milling machine with a BT40 or BT50 taper provides greater rigidity for heavy cutting, while BT30 is lighter and better suited to high-speed, light-cut applications. Compatibility with your existing toolholders and tool library is also a practical consideration that can affect upfront tooling investment.

Evaluating CNC Control Systems and Software Integration

Control Architecture and Programming Capabilities

The CNC control system is the interface between the operator, the program, and the milling machine’s mechanical systems. Modern controls offer graphical simulation, background program editing, real-time override adjustments, and increasingly, connectivity features that support data logging and remote monitoring. Evaluating the control should go beyond brand preference and focus on how naturally it integrates with your shop’s existing workflow.

Programming options matter significantly. A milling machine control that supports both G-code and conversational programming gives operators flexibility depending on part complexity. For high-volume production shops, direct integration with CAM software through post-processors is essential to eliminate manual code editing and reduce the risk of programming errors.

Look closely at the control’s cycle time optimization features. Some modern milling machine controls include advanced look-ahead buffering and nano-interpolation that smooth motion paths and reduce vibration at high feed rates. These features contribute directly to surface finish quality and tool life, making them relevant beyond simple convenience.

Connectivity, Automation Readiness, and Industry 4.0 Features

For machine shops investing in long-term competitiveness, a milling machine’s readiness for automation and digital connectivity is increasingly important. Ethernet connectivity, MTConnect compatibility, and OPC-UA protocol support allow the milling machine to share operational data with MES systems, ERP platforms, and shop-floor monitoring dashboards.

Automation readiness is another dimension to evaluate carefully. A milling machine equipped with standard interfaces for robotic loading, automatic pallet changers, and tool life monitoring systems can become the foundation of a lights-out or minimally attended production cell. This scalability protects the investment by allowing productivity upgrades without full machine replacement.

Even if your shop is not immediately implementing automation, choosing a milling machine that supports these capabilities ensures that the machine can grow with your operational strategy rather than becoming a bottleneck when automation becomes necessary.

Structural Rigidity, Accuracy, and Long-Term Reliability

Machine Construction and Casting Quality

The structural design of a milling machine determines its ability to maintain accuracy under cutting forces and thermal loads over thousands of operating hours. Cast iron construction, particularly Meehanite or equivalent high-grade castings, provides excellent vibration damping and thermal stability. Inspect the column, bed, and saddle designs to understand how well the machine will resist deflection under heavy cuts.

Finite element analysis (FEA) is now commonly used by manufacturers to optimize machine structure before production. A milling machine designed with FEA-validated casting geometry will typically exhibit better dynamic stiffness than machines designed purely from historical precedent. Ask manufacturers for structural analysis documentation when evaluating premium machines.

Thermal compensation is another accuracy-related feature worth examining. A milling machine that runs for extended periods will experience spindle and structural heating that causes dimensional drift. Built-in thermal compensation algorithms — particularly for the Z-axis — help maintain part accuracy during long production runs without manual operator correction.

Ballscrew, Linear Guideway, and Positioning Accuracy

The motion system of a milling machine governs its positioning accuracy, repeatability, and surface finish capability. High-precision ballscrews with preloaded nuts eliminate backlash and ensure that rapid reversals do not introduce dimensional errors. The pitch accuracy and preload class of the ballscrew directly affect the tolerance capability of the machine across its service life.

Linear roller guideways provide low friction, high rigidity, and excellent load capacity compared to traditional box-way designs. For a milling machine handling high-speed finishing operations, linear guideways allow faster rapid traverse speeds and smoother feed motion. Box-way construction, while heavier and slower, provides superior damping for heavy roughing in steel and other tough materials.

Always request the manufacturer’s positioning accuracy and repeatability specifications in ISO standard format. A milling machine quoted at ±0.005mm positioning accuracy should be verifiable through ballbar testing and linear measurement, and understanding how the machine is tested and calibrated before delivery is essential information for quality-driven shops.

Total Cost of Ownership and Vendor Support Evaluation

Purchase Price vs. Lifecycle Cost

The purchase price of a milling machine is only the beginning of the financial conversation. Lifecycle costs include preventive maintenance, consumable parts such as filters and seals, coolant management, spindle repair, and eventual control system upgrades. A milling machine purchased at a lower initial price but with higher ongoing maintenance burden can easily exceed the total cost of a premium machine over a five-to-ten-year horizon.

Evaluate the availability and cost of spare parts before committing to a purchase. A milling machine that requires specialized imported components with long lead times creates production risk every time an unplanned failure occurs. Shops that prioritize uptime should favor machines with well-established parts distribution networks and local technical support capabilities.

Energy consumption is an increasingly relevant lifecycle cost as energy prices rise globally. A milling machine with efficient servo drives, standby power modes, and regenerative braking can generate meaningful savings over its operational lifetime. Reviewing the machine’s power consumption specifications relative to its cutting performance gives a realistic picture of operational efficiency.

After-Sales Service, Training, and Application Support

The quality of vendor support can make or break the productivity impact of a new milling machine. Evaluate whether the supplier offers on-site installation, calibration, and operator training as part of the purchase package. A milling machine that is incorrectly installed or where operators are not properly trained will never achieve its rated performance regardless of how capable the machine is on paper.

Technical support responsiveness is critical in production environments where a downed milling machine directly translates to missed delivery commitments. Evaluate the supplier’s average response time for service calls, the availability of remote diagnostics, and whether the service team has application knowledge relevant to your specific machining processes.

Application engineering support — the ability to consult with technical experts during the quoting and selection process — is a differentiator that adds genuine value beyond the machine itself. A supplier willing to review your part drawings, discuss fixturing strategies, and recommend appropriate tooling for your milling machine is a partner, not just a transaction counterparty.

FAQ

What size milling machine does a small-to-medium machine shop typically need?

The appropriate size depends primarily on the maximum workpiece envelope your shop handles regularly, not your largest occasional job. For a general-purpose machine shop, a milling machine with approximately 600mm to 900mm of X-axis travel and a table load capacity of 400 to 600 kilograms covers the majority of prismatic part work. Oversizing the machine increases capital cost and floor space requirements without productivity benefit if your typical parts are smaller.

How important is spindle speed range when selecting a milling machine?

Spindle speed range is highly important because it directly determines which materials and cutter diameters you can use efficiently. A milling machine with a maximum spindle speed of 8,000 RPM may be sufficient for steel and cast iron work but will be limiting if your shop also mills aluminum or requires small-diameter tool finishing at high surface footage. If your shop handles a broad mix of materials, prioritize a milling machine with a wide speed range and a high-torque zone at lower RPM.

Can a milling machine be retrofitted for automation after purchase?

Yes, many modern milling machines are designed with automation interfaces that allow robotic loading and automatic pallet changers to be added after initial purchase. However, retrofitting is typically more expensive and technically complex than specifying automation-readiness at the time of purchase. If there is any reasonable likelihood that your shop will pursue automation within five years, it is strongly advisable to select a milling machine with the necessary control interfaces, door opening dimensions, and structural provisions already built in.

What is the most common mistake shops make when buying a milling machine?

The most common mistake is evaluating the milling machine primarily on purchase price without adequately assessing lifecycle cost, axis travel adequacy for future work, and the quality of after-sales support. Shops frequently discover that a milling machine chosen on cost grounds requires costly spindle repairs, has limited spare parts availability, or cannot accommodate the larger or more complex parts they eventually win contracts to produce. A thorough evaluation framework that prioritizes total value over initial price consistently delivers better long-term outcomes.

Conclusion

Selecting the right milling machine is a strategic investment that directly influences machining capability, production efficiency, product quality, and long-term profitability. From understanding the differences between vertical milling machines, horizontal milling machines, and CNC milling machines to evaluating spindle performance, machine rigidity, control systems, lifecycle costs, and after-sales support, every purchasing decision should be aligned with your shop’s actual production requirements rather than short-term budget considerations.

By carefully assessing technical specifications, automation potential, service support, and total cost of ownership, manufacturers can invest in a milling machine that delivers reliable performance, higher productivity, and long-term value. Whether you are expanding an existing machine shop or building a new production facility, choosing the right milling machine today will provide the flexibility and precision needed to remain competitive in tomorrow’s manufacturing environment.

Choosing the right Vertical Milling Machine for a small shop is one of the most consequential equipment decisions a machinist or shop owner will make.

Unlike large industrial facilities that can accommodate floor-standing behemoths with unlimited power supplies, small shops operate under real constraints — limited floor space, tighter budgets, and the need for machinery that performs across a wide variety of tasks without requiring a dedicated operator for each job. The vertical milling machine sits at the center of that challenge, offering the versatility, precision, and accessibility that small-shop environments demand.

This article is written specifically for small shop operators — job shops, prototyping studios, toolrooms, and independent machinists — who need clear, practical guidance on what makes a vertical milling machine the right fit for compact, high-mix, low-volume work. We will examine the defining characteristics of a quality vertical milling machine in this context, the structural and performance factors that matter most, and how to evaluate a machine against the actual workload of a small shop. Every section below is designed to help you make a confident, well-reasoned selection.

Why a Vertical Milling Machine Is the Right Starting Point for Small Shops

The Operational Logic Behind Vertical Orientation

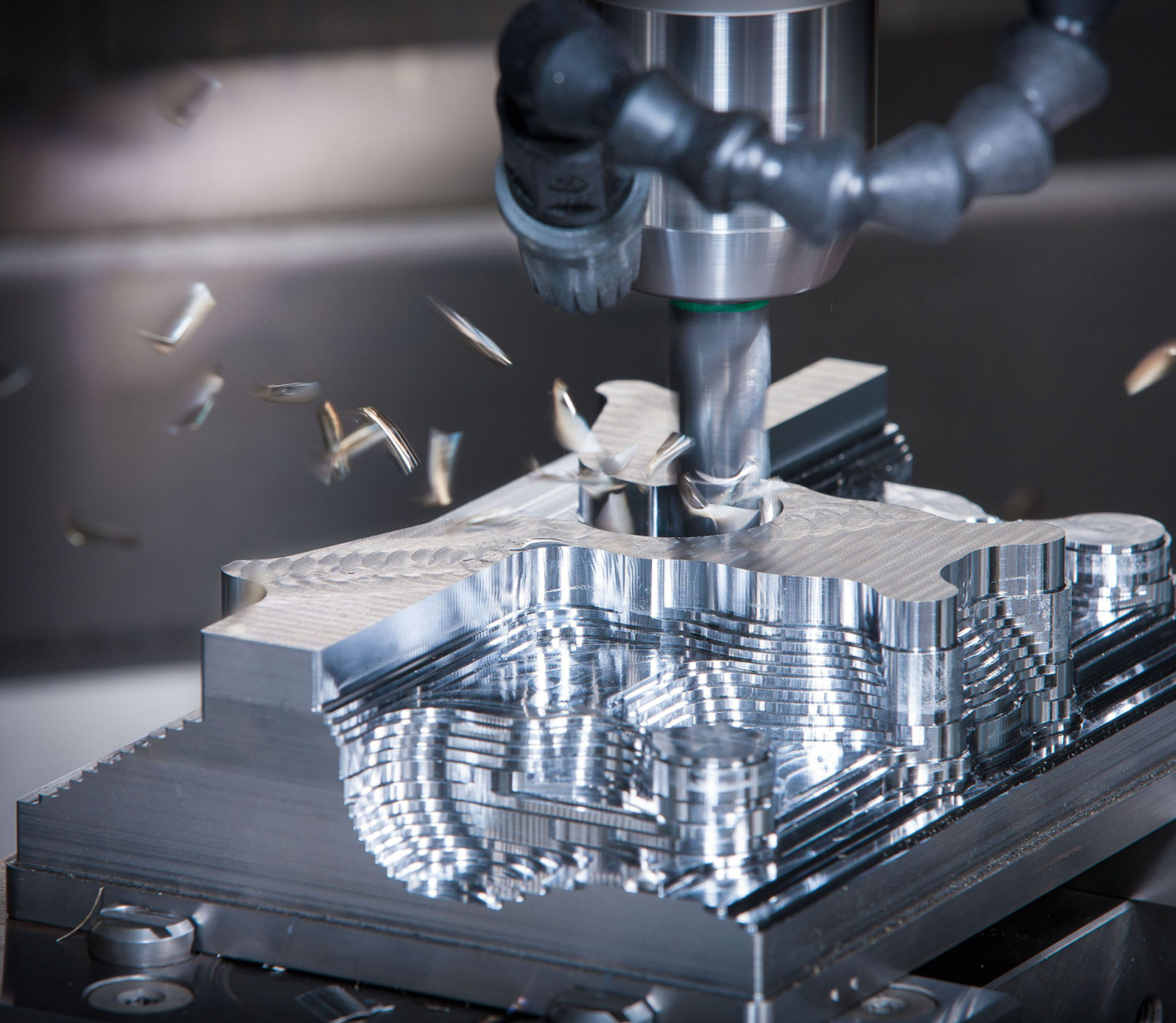

A vertical milling machine positions its spindle axis perpendicular to the worktable, pointing downward toward the workpiece. This orientation is intuitive for the operator, making it easier to set up workpieces, visualize cutting paths, and monitor the machining process in real time. For small shops where one operator often handles setup, programming, and inspection, that visibility is not a minor convenience — it is a daily productivity advantage.

The vertical configuration also supports a wide range of cutting operations — face milling, end milling, drilling, boring, slotting, and contouring — without requiring the machine to be repositioned or reconfigured. In a small shop where floor space is limited and changeover time directly affects output, this multi-purpose capability makes the vertical milling machine a foundational asset rather than a single-purpose investment.

Furthermore, the vertical milling machine tends to be more compact than comparable horizontal machines, which is a direct advantage in shops where every square foot counts. A well-designed vertical milling machine can deliver serious cutting performance within a footprint that fits comfortably alongside other equipment.

Fit for High-Mix, Low-Volume Work

Small shops rarely run the same part for weeks at a time. The work is diverse — custom components, repair parts, prototype runs, short production batches — and the equipment must adapt quickly. A vertical milling machine excels in this environment because setup changes are fast, workholding options are extensive, and the operator can move between job types without elaborate machine reconfiguration.

This agility is built into the design of a good vertical milling machine. The worktable travels in X and Y axes, the quill or knee provides Z-axis control, and the spindle speed is adjustable to accommodate different materials and tooling. For a small shop taking on aluminum aerospace parts one day and steel fixture components the next, that combination of flexibility and control is exactly what the work demands.

In contrast, highly specialized machines optimized for a narrow range of operations require shops to route work externally or invest in additional equipment. A capable vertical milling machine keeps more work in-house, which improves margins and turnaround time — two priorities that define competitiveness for small operations.

Key Structural Features That Define a Quality Vertical Milling Machine for Small Shops

Rigidity and Casting Quality

Rigidity is the single most important structural characteristic of any vertical milling machine, and it is especially critical in small shop environments where the machine must handle a range of materials and cutting conditions. A machine built from high-quality castings — typically Meehanite or nodular cast iron — absorbs vibration more effectively, maintains dimensional stability over time, and allows heavier cuts without chatter. Chatter not only degrades surface finish but shortens tool life, which is a direct cost burden for any shop.

When evaluating a vertical milling machine for rigidity, look beyond the overall weight and examine the design of the column, knee, and head. These three structural elements form the load path from the cutting tool to the floor. Any weakness or looseness in these joints translates directly into dimensional errors in the finished part. A well-engineered vertical milling machine will have tight dovetail or box-way guideways, properly preloaded leadscrews or ballscrews, and a head assembly that locks securely without residual movement.

For small shops that cannot afford dedicated finishing machines, the rigidity of the vertical milling machine determines whether it can serve as both a roughing and finishing platform. A rigid machine makes that dual role practical; a flex-prone machine forces compromises on cut depth or feed rate that reduce throughput.

Spindle Specifications and Taper Selection

The spindle is the heart of any vertical milling machine, and its specifications directly affect what work the machine can perform. Spindle taper selection — commonly R8, ISO 30, ISO 40, or BT30/BT40 — determines toolholder compatibility and the maximum torque the tool-spindle interface can handle. For small shops, R8 is historically common in manual machines for its simplicity and wide toolholder availability. CNC-ready vertical milling machines typically use ISO 30 or BT30 for better repeatability and automatic tool change compatibility.

Spindle speed range matters significantly in small shop environments. A vertical milling machine with a broad RPM range — from low-speed, high-torque settings for large diameter cutters in steel to high-speed settings for small end mills in aluminum — gives the operator genuine versatility. Gear-driven spindles tend to offer more torque at low speeds, while belt-driven and direct-drive configurations may provide smoother operation at higher speeds. Understanding the dominant material mix in your shop should guide this decision.

Spindle runout is another specification that deserves close attention. Low runout — measured in microns — directly impacts dimensional accuracy and surface finish. A vertical milling machine with high spindle runout will struggle to hold tight tolerances regardless of how skilled the operator is, making it unsuitable for precision work that small shops often rely on to differentiate themselves from lower-cost competition.

Table Size, Travel, and Workpiece Capacity Considerations

Matching Table Dimensions to Your Typical Workpiece

The worktable of a vertical milling machine defines the practical upper limit of workpiece size and weight the machine can accommodate. For small shops, the goal is to select a table large enough to handle the majority of anticipated work without purchasing more table area — and supporting machine mass — than necessary. Over-specifying table size means a heavier, more expensive machine that is harder to install and costs more to operate.

Standard small-shop vertical milling machines typically feature tables in the range of 9 x 32 inches to 10 x 54 inches, though this varies by machine class. Evaluate not just the table surface area but the available T-slot configuration, which determines workholding flexibility. More T-slots and consistent slot spacing make it easier to fixture a wider variety of workpiece geometries, which is valuable in a shop handling diverse jobs.

Table load capacity is equally important and often overlooked. A vertical milling machine rated for a specific maximum table load will begin to exhibit flex or guideway wear if that rating is consistently exceeded. Shops that regularly machine large steel blocks or cast iron components need to verify that the machine’s structural ratings align with their actual workload rather than assuming adequacy based on table size alone.

Axis Travel and Z-Axis Flexibility

The axis travel on a vertical milling machine determines the maximum range of motion available in X, Y, and Z directions. For small shops, sufficient Z-axis travel is especially important because it governs the range of workpiece heights the machine can accommodate without requiring complicated setup modifications. Machines with limited Z travel force operators to build up or cut down fixtures, adding non-value-added time to every job that falls outside the nominal range.

The knee-type design common in manual and hybrid vertical milling machines provides Z-axis adjustment through knee elevation as well as quill travel. This dual Z-axis capability gives operators more practical flexibility for varying workpiece heights and is one reason why knee-type vertical milling machines remain popular in small shops even as CNC-only machines have become more accessible.

CNC vertical milling machines for small shops typically offer servo-driven Z-axis travel through the spindle head or the table itself, depending on the design. The key evaluation criterion is not just the total travel figure but the repeatability and positional accuracy of the Z axis under load, since Z-axis errors directly affect depth-of-cut consistency and feature height tolerances across a part.

CNC vs. Manual Vertical Milling Machine: Decision Criteria for Small Shops

When a Manual Vertical Milling Machine Still Makes Sense

CNC Vertical Milling Machine Advantages in a Small Shop Context

Practical Evaluation Criteria When Selecting a Vertical Milling Machine for Your Shop

Assessing Fit Against Your Shop’s Actual Workload

Long-Term Support, Parts Availability, and Service Network
