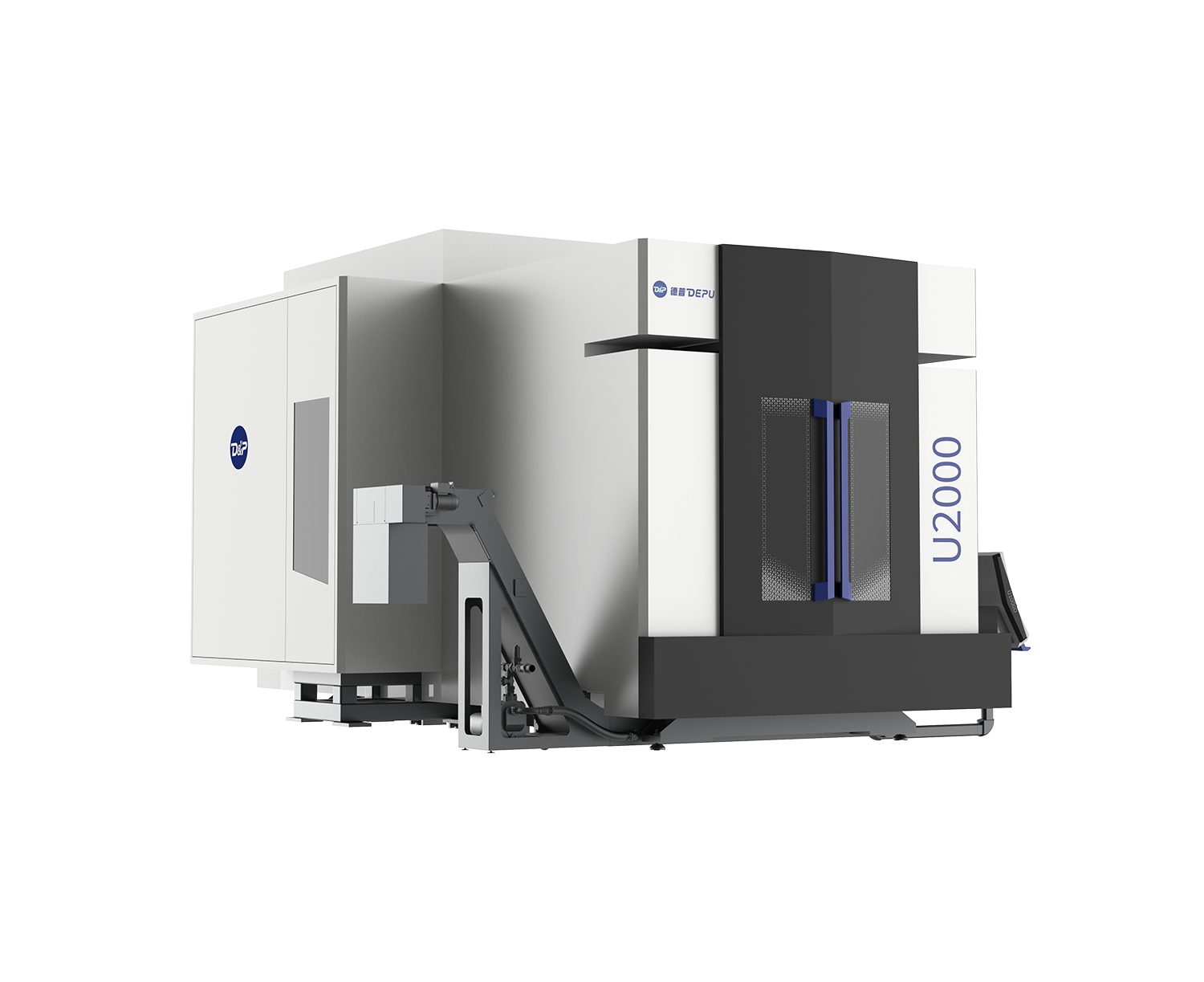

U2000
Specification parameters
|
Working Range |
X- / Y- / Z (mm) |
2100/2100/1700 |
|
B / C (°) |
-15-+180/360 |
|
|
Max. Workpiece Dimensions (mm) |
Φ 1580*1650 |
|
|
Max. Load Capacity (Uniform) (kg) |
8000 |
|
|
Rapid Traverse |
X/Y/Z(m/min) |
18 |
|
B / C (rpm/min) |
35/12 |
|
|
Spindle Parameters |
Tool Interface |
HSK-A100 |
|
Max. Speed（rpm) |
10000/12000(optional) |
|
|
Power（kw) |
40/25（optional） |
|
|
Torque（S1/S6）(N.m) |
200/300（optional 130/100） |
|
|
Tool Magazine |
Capacity (T) |
40/60 |
|
Max. Tool Length/Weight |
mm/kg |
400/15 |
|
Machine Weight |
Kg |
50000 |
|
Dimensions |
mm |
9600x8000x5300 |
